Configuring QR Code Scanning for Business Cards

The following example shows how to configure scanning business card to add a new a contact person (KP).

To configure the QR scan function to scan business cards to add a new a contact person (KP):

1. Click on Infoareas on the start page and then switch to the Person in Company (KP) info area.
2. Add a field group, e.g. KP scan:

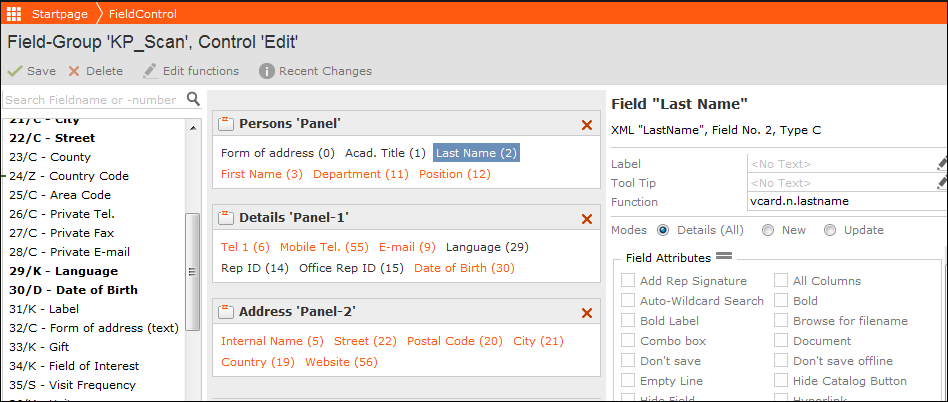

3. Assign the following Function names to the following fields:

   Field	Function
   Last Name	vcard.n.lastname
   First Name	vcard.n.firstname
   Tel1	vcard.tel+work+voice
   Mobile Tel	vcard.tel+cell
   E-Mail	vcard.email+work
   Birth Date	vcard.bday
   Internal Name	vcard.org.0
   Postal Code	vcard.adr.postalcode
   Ort	vcard.adr.locality
   Street	vcard.adr.street
   Country	vcard.adr.country
   Website	vcard.url
   Department	vcard.org
   Positition	vcard.org.0

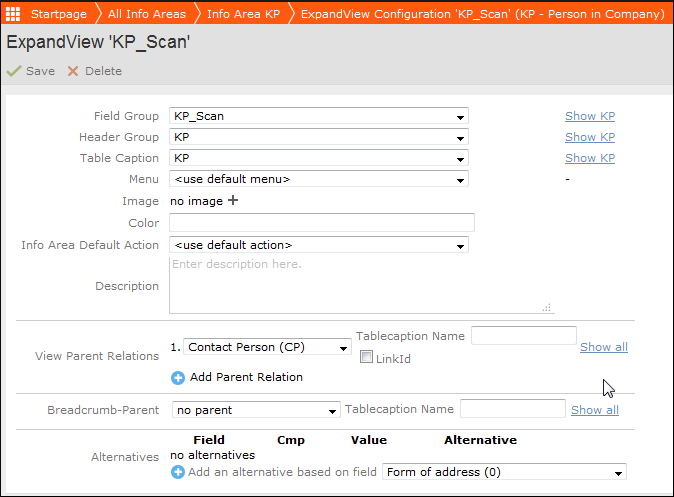

4. Add an Expand configuration, e.g. KP_Scan, to the KP info area and and assign the previously added field group, e.g KP_Scan:



5. Switch to the Buttons area (from the start page) and add a button (e.g. AddPerson_Scan), assign the NewView action and specify the following input arguments:

   Input Argument	Value
   keyboardWithScannedSuggestions	CONTROLS
   ConfigName	KP_Scan
   LinkRecord	Record

6. Add the button to the desired Expand header.
