Won/Lost Properties Non-Buying Participants
This analysis shall give an overview of all companies that have been participating in properties that were marked as won/lost.
The analysis itself gives a complete overview oo all the participants. From the view the user can directly navigate to the respective company record.

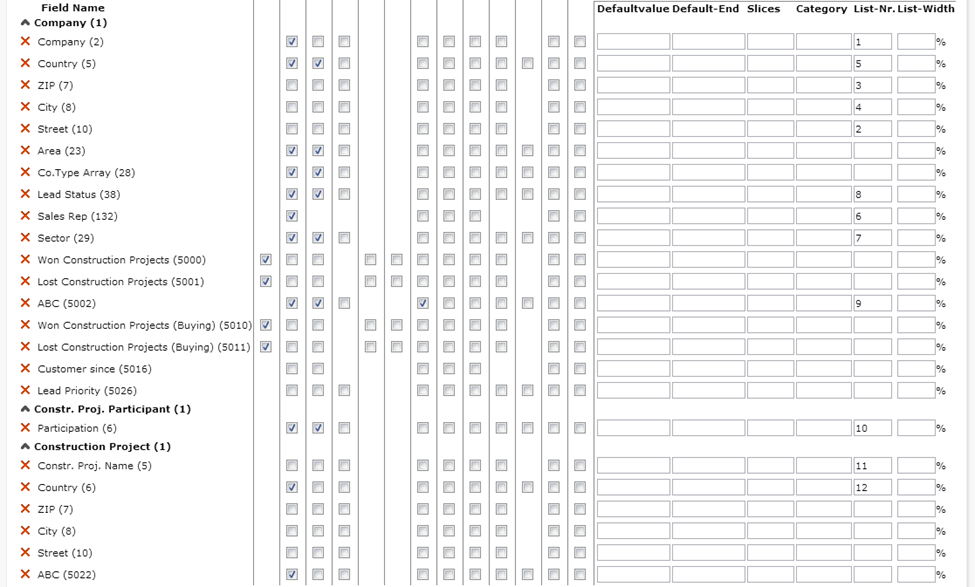

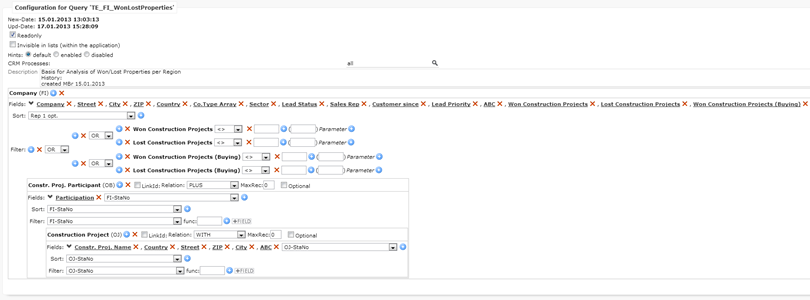

Query: TE_FI_WonLostProperties
The query selects all required fields from the Company info area. In Addition, the linked property participants and the linked properties are selected to enable a full drill-through to record level.

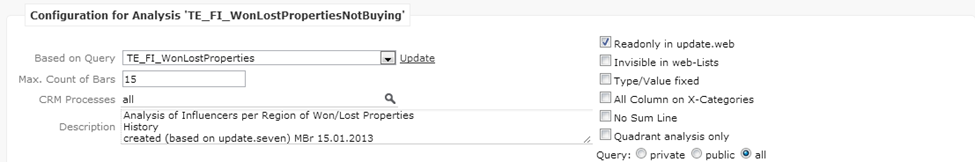

Analysis: TE_FI_WonLostPropertiesNotBuying
The above defined query is called. No special definitions are made.
The sorting by ABC is disabled by default, information from FI, OB and OJ act as filter and drill-down possibilities. Information from FI, OB and OJ is used for the list view.

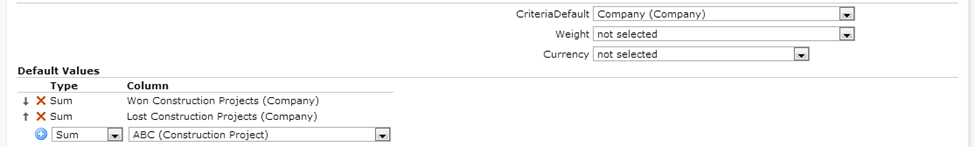

A sum of all won and lost projects per company is provided. The sum is precalculated via a background workflow.
Form: TE_WonLostPropertiesNotBuying

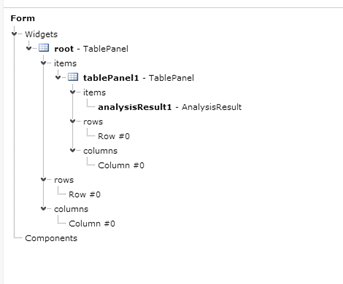

Layout of the form:

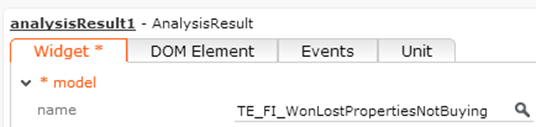

Details definition of analysisResult1:
The above defined analysis is called.

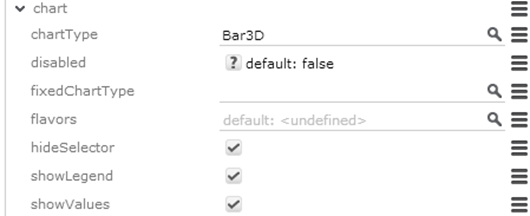

The bar3D chart is selected by default. The user cannot change this, legend and values are shown.

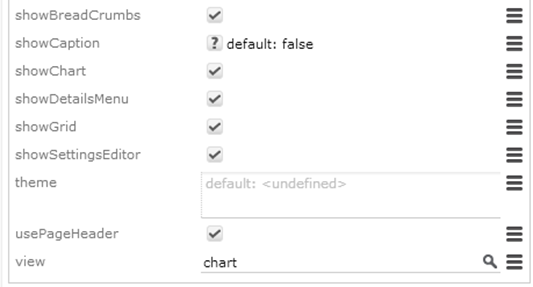

The form starts with the chart view, the user sees the details menu and also has the possibility to switch to grid view.

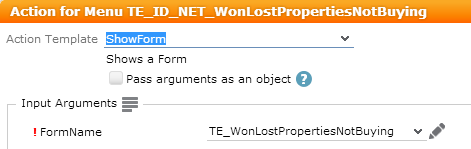

Application Menu Entry: TE_ID_NET_WonLostPropertiesNotBuying
The entry is directly integrated into the “ID_NET_QUERIES_AND_STATISTICS” application menu and calls the form without any additional parameters:
